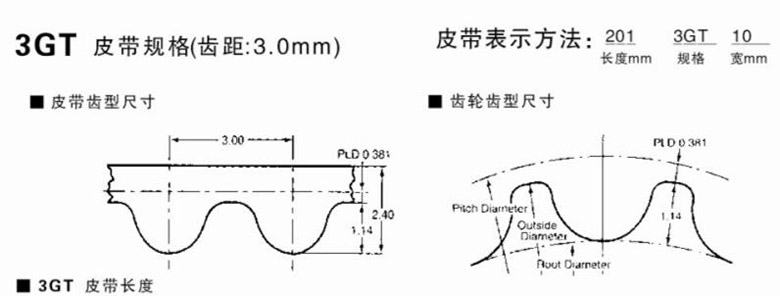

Спецификация зубчатых ремней типа 3GT
|
Specification |
Length (mm) |
Tooth number |
Specification |
Length (mm) |
Tooth number |
Specification |
Length (mm) |
Tooth number |
Specification |
Length (mm) |
Tooth number | |||
|
81-3GT |
81.0 |
27 |
273-3GT |
273.0 |
91 |
495-3GT |
495.0 |
165 |
840-3GT |
840 |
280 | |||
|
93-3GT |
93.0 |
31 |
276-3GT |
276.0 |
92 |
501-3GT |
501.0 |
167 |
852-3GT |
852 |
284 | |||
|
102-3GT |
102.0 |
34 |
282-3GT |
282.0 |
94 |
504-3GT |
504.0 |
168 |
858-3GT |
858 |
286 | |||
|
105-3GT |
105.0 |
35 |
285-3GT |
285.0 |
95 |
510-3GT |
510.0 |
170 |
870-3GT |
870 |
290 | |||
|
108-3GT |
108.0 |
36 |
288-3GT |
288.0 |
96 |
513-3GT |
513.0 |
171 |
882-3GT |
882 |
294 | |||
|
114-3GT |
114.0 |
38 |
291-3GT |
291.0 |
97 |
522-3GT |
522.0 |
174 |
900-3GT |
900 |
300 | |||
|
117-3GT |
117.0 |
39 |
297-3GT |
297.0 |
99 |
525-3GT |
525.0 |
175 |
912-3GT |
912 |
304 | |||
|
120-3GT |
120.0 |
40 |
300-3GT |
300.0 |
100 |
537-3GT |
537.0 |
179 |
924-3GT |
924 |
308 | |||
|
123-3GT |
123.0 |
41 |
303-3GT |
303.0 |
101 |
540-3GT |
540.0 |
180 |
936-3GT |
936 |
312 | |||
|
126-3GT |
126.0 |
42 |
309-3GT |
309.0 |
103 |
543-3GT |
543.0 |
181 |
948-3GT |
948 |
316 | |||
|
129-3GT |
129.0 |
43 |
315-3GT |
315.0 |
105 |
549-3GT |
549.0 |
183 |
963-3GT |
963 |
321 | |||
|
132-3GT |
132.0 |
44 |
318-3GT |
318.0 |
106 |
552-3GT |
552.0 |
184 |
972-3GT |
972 |
324 | |||
|
135-3GT |
135.0 |
45 |
324-3GT |
324.0 |
108 |
558-3GT |
558.0 |
186 |
993-3GT |
993 |
331 | |||
|
138-3GT |
138.0 |
46 |
327-3GT |
327.0 |
109 |
561-3GT |
561.0 |
187 |
996-3GT |
996 |
332 | |||
|
141-3GT |
141.0 |
47 |
330-3GT |
330.0 |
110 |
564-3GT |
564.0 |
188 |
1005-3GT |
1005 |
335 | |||
|
144-3GT |
144.0 |
48 |
333-3GT |
333.0 |
111 |
570-3GT |
570.0 |
190 |
1008-3GT |
1008 |
336 | |||
|
147-3GT |
147.0 |
49 |
336-3GT |
336.0 |
112 |
576-3GT |
576.0 |
192 |
1014-3GT |
1014 |
338 | |||
|
150-3GT |
150.0 |
50 |
339-3GT |
339.0 |
113 |
579-3GT |
579.0 |
193 |
1050-3GT |
1050 |
350 | |||
|
156-3GT |
156.0 |
52 |
342-3GT |
342.0 |
114 |
582-3GT |
582.0 |
194 |
1059-3GT |
1059 |
353 | |||
|
159-3GT |
159.0 |
53 |
345-3GT |
345.0 |
115 |
597-3GT |
597.0 |
199 |
1068-3GT |
1068 |
356 | |||
|
162-3GT |
162.0 |
54 |
348-3GT |
348.0 |
116 |
600-3GT |
600.0 |
200 |
1086-3GT |
1086 |
362 | |||
|
168-3GT |
168.0 |
56 |
351-3GT |
351.0 |
117 |
609-3GT |
609.0 |
203 |
1098-3GT |
1098 |
366 | |||
|
174-3GT |
174.0 |
58 |
354-3GT |
354.0 |
118 |
612-3GT |
612.0 |
204 |
1113-3GT |
1113 |
371 | |||
|
177-3GT |
177.0 |
59 |
357-3GT |
357.0 |
119 |
618-3GT |
618.0 |
206 |
1137-3GT |
1137 |
379 | |||
|
180-3GT |
180.0 |
60 |
363-3GT |
363.0 |
121 |
624-3GT |
624.0 |
208 |
1170-3GT |
1170 |
390 | |||
|
186-3GT |
186.0 |
62 |
369-3GT |
369.0 |
123 |
633-3GT |
633.0 |
211 |
1188-3GT |
1188 |
396 | |||
|
189-3GT |
189.0 |
63 |
375-3GT |
375.0 |
125 |
639-3GT |
639.0 |
213 |
1212-3GT |
1212 |
404 | |||
|
192-3GT |
192.0 |
64 |
378-3GT |
378.0 |
126 |
642-3GT |
642.0 |
214 |
1260-3GT |
1260 |
420 | |||
|
195-3GT |
195.0 |
65 |
381-3GT |
381.0 |
127 |
651-3GT |
651.0 |
217 |
1290-3GT |
1290 |
430 | |||
|
198-3GT |
198.0 |
66 |
384-3GT |
384.0 |
128 |
666-3GT |
666.0 |
222 |
1305-3GT |
1305 |
435 | |||
|
201-3GT |
201.0 |
67 |
393-3GT |
393.0 |
131 |
672-3GT |
672.0 |
224 |
1335-3GT |
1335 |
445 | |||
|
204-3GT |
204.0 |
68 |
396-3GT |
396.0 |
132 |
675-3GT |
675.0 |
225 |
1374-3GT |
1374 |
458 | |||
|
207-3GT |
207.0 |
69 |
399-3GT |
399.0 |
133 |
681-3GT |
681.0 |
227 |
1386-3GT |
1386 |
462 | |||
|
210-3GT |
210.0 |
70 |
402-3GT |
402.0 |
134 |
687-3GT |
687.0 |
229 |
1422-3GT |
1422 |
474 | |||
|
213-3GT |
213.0 |
71 |
408-3GT |
408.0 |
136 |
690-3GT |
690.0 |
230 |
1446-3GT |
1446 |
482 | |||
|
216-3GT |
216.0 |
72 |
414-3GT |
414.0 |
138 |
693-3GT |
693.0 |
231 |
1521-3GT |
1521 |
507 | |||
|
222-3GT |
222.0 |
74 |
417-3GT |
417.0 |
139 |
699-3GT |
699.0 |
233 |
1545-3GT |
1545 |
515 | |||
|
225-3GT |
225.0 |
75 |
420-3GT |
420.0 |
140 |
702-3GT |
702.0 |
234 |
1569-3GT |
1569 |
523 | |||
|
228-3GT |
228.0 |
76 |
423-3GT |
423.0 |
141 |
705-3GT |
705.0 |
235 |
1650-3GT |
1650 |
550 | |||
|
231-3GT |
231.0 |
77 |
426-3GT |
426.0 |
142 |
708-3GT |
708.0 |
236 |
1680-3GT |
1680 |
560 | |||
|
234-3GT |
234.0 |
78 |
432-3GT |
432.0 |
144 |
720-3GT |
720.0 |
240 |
1722-3GT |
1722 |
574 | |||
|
237-3GT |
237.0 |
79 |
444-3GT |
444.0 |
148 |
741-3GT |
741.0 |
247 |
1851-3GT |
1851 |
617 | |||
|
240-3GT |
240.0 |
80 |
447-3GT |
447.0 |
149 |
744-3GT |
744.0 |
248 |
1860-3GT |
1860 |
620 | |||
|
243-3GT |
243.0 |
81 |
453-3GT |
453.0 |
151 |
750-3GT |
750.0 |
250 |
1947-3GT |
1947 |
649 | |||
|
246-3GT |
246.0 |
82 |
456-3GT |
456.0 |
152 |
756-3GT |
756.0 |
252 |
2025-3GT |
2025 |
675 | |||
|
252-3GT |
252.0 |
84 |
459-3GT |
459.0 |
153 |
765-3GT |
765.0 |
255 |
2100-3GT |
2100 |
700 | |||
|
255-3GT |
255.0 |
85 |
462-3GT |
462.0 |
154 |
774-3GT |
774.0 |
258 |
2340-3GT |
2340 |
780 | |||
|
258-3GT |
258.0 |
86 |
471-3GT |
471.0 |
157 |
783-3GT |
783.0 |
261 |
2490-3GT |
2490 |
830 | |||
|
264-3GT |
264.0 |
88 |
480-3GT |
480.0 |
160 |
789-3GT |
789 |
263 |
2547-3GT |
2547 |
849 | |||
|
267-3GT |
267.0 |
89 |
486-3GT |
486.0 |
162 |
810-3GT |
810 |
270 |
2790-3GT |
2790 |
930 | |||
|
270-3GT |
270.0 |
90 |
489-3GT |
489.0 |
163 |
822-3GT |
822 |
274 |
|
|
|
